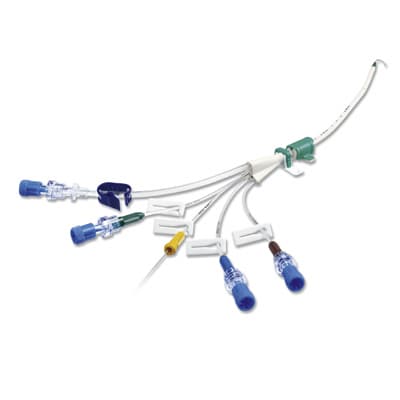

Certofix® Quinto
Five-lumen catheter set for catheterisation of the vena cava according to the Seldinger method with the possibility of intra-atrial ECG lead
Set consists of:
Valve needle = V
Seldinger needle = S
Kink-proof guide-wire
With flexible J-tip
Length marking for identification of optimal catheter to guide-wire lengthfor intra-atrial ECG
Dilator
Cutfix® scalpel
Omnifix® Luer-Lock syringe, 5 ml
Five-lumen catheter
Made of PUR
Outer diameter 12 F
Soft catheter tip
X-ray detectable, opaque
Five-lumens:
distal = 16 G; middle 1 = 18G; middle 2 = 18 G; proximal = 18 G;
proximal = 12G
With Safsite® valves
Length markings for accurate catheter placment
Color-coded Luer-Lock fitting
Fixation wing at the channel junction for securing of the catheter
Protruding, adjustable fixation wing for stitch fixation at the puncture site (only 20 cm length)
