Certofix® Quattro
Four-lumen catheter set for catheterisation of the vena cava according to the Seldinger method with the possibility of intra-atrial ECG lead
Set consists of:
Valve needle = V
Kink-proof guide-wire
With flexible J-tip and flexible straight tip
Length marking to identify optimal catheter to guide-wire length for intra-atrial ECG
Dilator
Cutfix® scalpel
Omnifix® Luer-Lock syringe, 5 ml

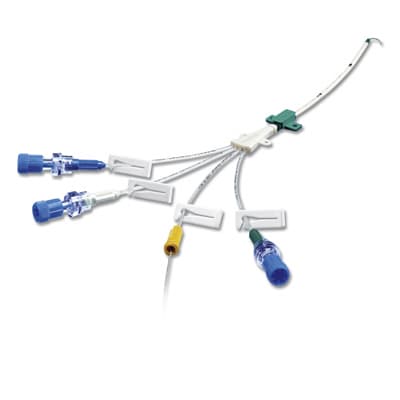

Four-lumen catheter
Made of PUR
Outer diameter 8 F
Soft catheter tip
X-ray detectable, opaque
Four lumens: distal = 16 G, middle 1 = 18 G, middle 2 = 18 G, proximal = 14 G
WithSafsite® valves
Length markings for accurate catheter placement
Color-coded Luer-Lock fittings
Fixation wing at the channel junction for securing of the catheter
Protruding, adjustable fixation wing for stitch fixation at the puncture site together with fixation clip
