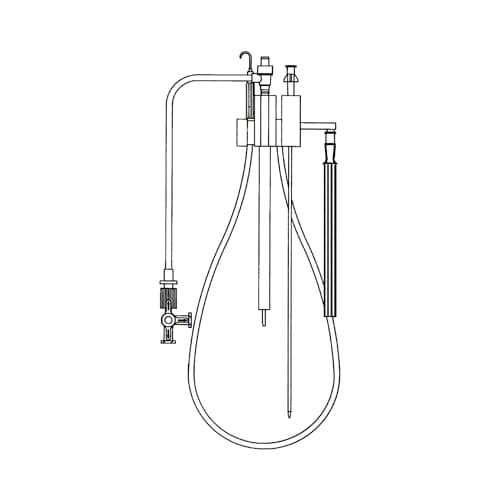

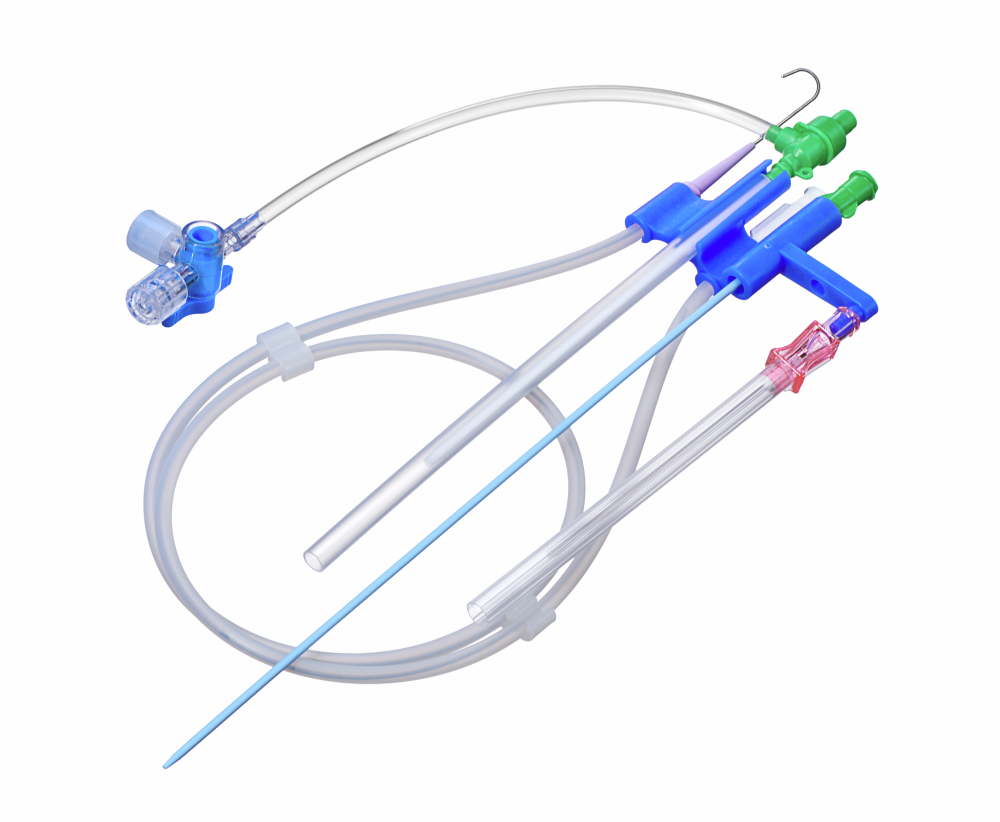

Introducer for the Seldinger technique to Desilets Hofmann. Available in different sizes (F4, F5, F6 and F7).
Guide wire, 40 cm
- Made of stainless steel, 0.035" (0.89 mm)
- Flexible J3 tip with insertion tool or flexible straight tip
Vessel dilator, 160 mm made of PE
- Conically shaped
- Smooth transition to the guide wire
Introducer Sheath, 110 mm made of FEP
- Thin-walled
- Smooth transition to the vessel dilator
- Luer-Lock connection
Hamostatic valve
- For prevention of blood backflow
- Arterial and venous use
- Smooth transition to catheter insertion
- Sideport with three-way stopcock for connecting infusion solutions and for injecting medication
