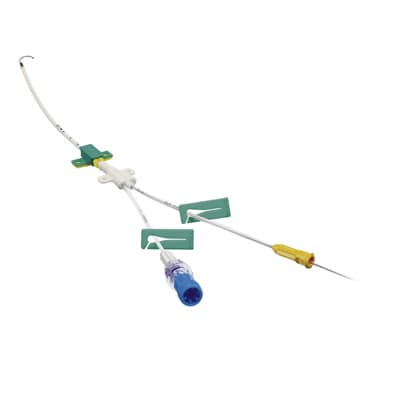

Antimicrobially modified double lumen catheter sets for catheterisation of the vena cava according to the Seldinger method with the possibility of intra-atrial ECG lead
Set consists of:
Valve needle = V
Kink-proof guide wire with flexible J-tip
Omnifix® lock syringe, 5 ml
Cutfix® scalpel
Dilator
Double-lumen catheter
Made of PUR
Soft catheter tip
X-ray detectable, opaque
Two lumens:
distal = 16 G; proximal = 16 G
With Safsite® valves
Length markings for accurate catheter placement
Color-coded Luer-Lock fittings
Fixation wing at the channel junction for securing of the catheter
Protruding, adjustable fixation wing for stitch fixation at the puncture site
