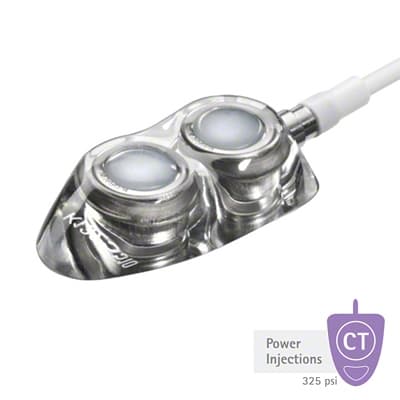

Celsite® Double Access Port Systems are indicated for any condition that requires mid to long-term intermittent or continuous venous infusion.
The Celsite® Double can be used for simultaneous venous infusion of incompatible drugs, for administration of continuous infusion and bolus injection and other indications when double access is needed. The off-set silicone catheter tip ensures that no mixing of drugs occurs at the catheter tip.
Special Features
- Allows simultaneous infusion of e.g. incompatible drugs

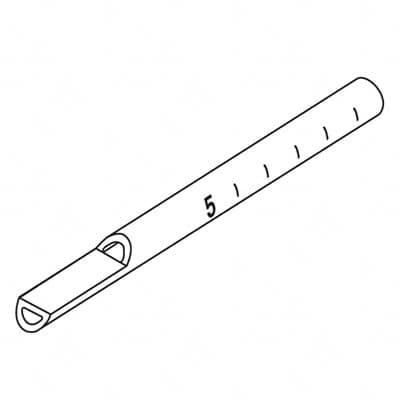

- Off-set silicone catheter tip ensures no mixing of incompatible drugs at the catheter tip
- For infusion with high flow rates by using both lumina
- Compact port design with enlarged puncture area in relation to the port housing size
- Available with radiopaque "CT" marking (except for the US market) which indicates power injectability of the port on x-ray
- High pressure resistance up to 325 PSI ( 22,4 bar)
General Features
- Anatomic design and lower profiled nose for simplified insertion and patient comfort
- Titanium chamber for enhanced security

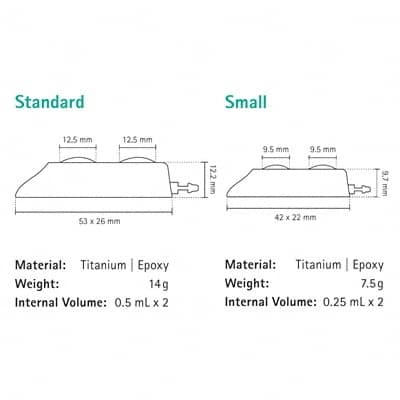

- Also available in small sizes to facilitate implantation in paediatric and underweight patients
- High density silicone septum for reliable puncture and to ensure maximum port life
- 2 suture holes to facilitate fixation of the port
- The radiopaque catheter is graduated from 5 cm in order to facilitate an easy, precise and safe implantation
- Rounded atraumatic catheter tip
- Reliable radiopaque connection ring with anti-kink protection
- MRI compatible, Latex, DEHP and PVC free
Available Implantation Technique
