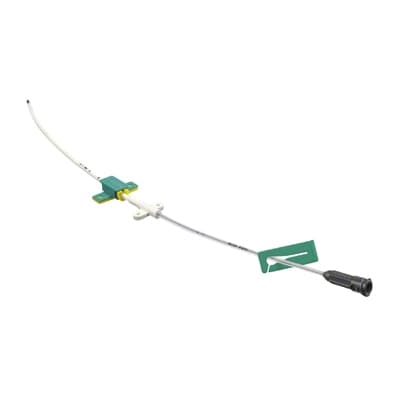

Antimicrobially modified single lumen catheter sets for catheterisation of the vena cava according to the Seldinger method with the possibility of intra-atrial ECG lead
Set consists of:
Valve needle = V
Kink-proof guide wire with flexible J-tip
Omnifix® Luer-Lock syringe, 5 ml
Dilator
Catheter
Made of PUR
Soft catheter tip
X-ray detectable, opaque
Single-lumen catheter
Length markings for accurate catheter placement
Fixation wing at the channel junction for securing of the catheter
Protruding, adjustable fixation wing for stitch fixation at the puncture site
